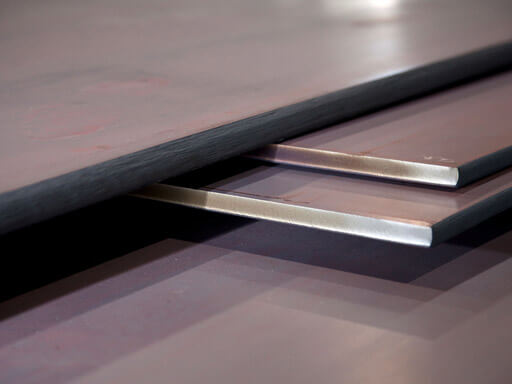

Chiranjiv Steel Centre is a highly respected company in the carbon SA 516 Grade 60 steel plate industry. They are known as manufacturers, suppliers, stockists, and exporters. These Grade 60 plates are made with a unique mix of chromium, manganese, aluminum, phosphorous, sulfur, and carbon, making them suitable for a wide range of industrial uses. The SA 516 GR 60 Plates offered by Chiranjiv Steel Centre include polished, hot-rolled, and cold-rolled options, as well as foils, coils, strips, plain sheets, and shim sheets, providing complete solutions for their customers.
Chiranjiv Steel Centre's Carbon SA 516 Grade 60 Steel Plate are used in various industries such as gas processing, pharmaceuticals, and chemical equipment. Our products, including dished ends, boilers, storage tanks, and pipe caps, meet global infrastructure requirements with a strong focus on quality.
Chiranjiv Steel Centre's SA 516 GR 60 Plates are incredibly durable, with rustproof features and excellent mechanical properties in different temperature conditions. Copper and molybdenum have been added to improve protection against corrosion, while chromium strengthens defenses against oxidizing agents, guaranteeing long-lasting performance and dependability even in challenging situations.
Our GR 60 plates are known for their exceptional strength and ease of welding, making them crucial in harsh conditions. These plates have undergone thorough testing for resistance to corrosion, detailed characteristics at different scales, strength, and more, proving their unmatched quality and accuracy. This highlights Chiranjiv Steel Centre's dedication to delivering exceptional products.
At Chiranjiv Steel Centre, our SA 516 GR 60 Plate selection represents top-notch quality, longevity, and effectiveness. Customers who value unparalleled reliability in carbon steel solutions prefer us.
| Grade | ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | -52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for Boilers and Pressure Vessels Application. |
| Process of Manufacturing | Hot-Rolled (HR) |
| British Standard | European Norm | ASTM/ASME | DIN |
|---|---|---|---|
| BS1501-161-430A | EN10028 P265GH | A/SA516 - Grade 60 | DIN 17155 HII |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
|---|---|---|---|
| 485-620 (70-90) | 260 (38) | 17 | 21 |
SA516 Grade 60 Pressure Vessel Plates, ASTM A516 Grade 60 Boiler Quality Plates, SA516 Gr 60 BQ Plates, SA 516 Gr 60 Hot Rolled Boiler Steel Plates, ASTM A516 Gr 60 Plates, SA516 Gr.60 Boiler Steel Plates, A516 Grade 60 Boiler Plates Distributor, ASME SA 516 Gr 60 Boiler & Pressure Vessel Stockist in Mumbai, India, ASME SA516 Gr 60 Carbon Steel Plate, SA 516 Lower Temperature Carbon Steel Grade 60 Plates Dealer, A516 Grade 60 HR Boiler Plates, ASTM A516 Gr 60 Boiler Plates Exporter, SA 516 Gr 60 Carbon Steel Pressure Vessel Plates, SA516 Grade 60 Pressure Vessel & Boiler Plates Supplier in India.
