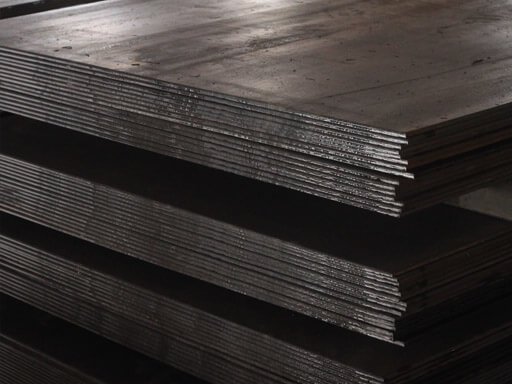

Chiranjiv Steel Centre is known for manufacturing, supplying, and exporting high-quality Carbon SA 516 Grade 65 HIC Steel Plates made from different alloys. We are proud to offer top-notch SA 516 GR.60N WITH NACE + HIC PLATES to the market. These plates meet both international and national standards and are well-regarded for their quality.
At our company, we take great pride in our ASME SA 516 GR.60N WITH NACE HIC PLATES BOILER PLATE. These plates are made from top-notch carbon steel, with added manganese, sulphur, and other key elements. They are built to last through fluctuating temperatures, making them a perfect choice for sectors such as petrochemicals.
These plates are specially designed for use in boiler pressure vessels and are known for their outstanding flexibility, ease of welding, and strength. Their unique combination of mechanical and chemical properties guarantees a long-lasting and dependable performance in both moderate and lower temperature settings. Whether you're a manufacturer, supplier, stockist, or exporter, we have a variety of plate options available in various thicknesses, sizes, and specifications to meet a wide range of industrial requirements.
Our SA 516 GR.60N NACE HIC PLATES are used in various industries such as heat exchangers, chemical, offshore, pulp and paper, marine, and oil and gas. These plates demonstrate our commitment to quality and innovation with their corrosion resistance, pitting, and crevice resistance, as well as abrasion resistance.
Here at Chiranjiv Steel Centre, our main focus is making sure our customers are happy with our products. We work hard to go above and beyond their expectations. We are known for our high quality products and we always follow strict standards to maintain our reputation as leaders in the industry. As manufacturers, suppliers, stockists, and exporters, we are proud of our track record of providing top-notch products that cater to the various needs of our clients.
| Grade | ASME SA 516 GR.60N Boiler and Pressure Vessel Steel Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | -52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for Boilers and Pressure Vessels Application. |
| Process of Manufacturing | Hot-Rolled (HR) |
| British Standard | European Norm | ASTM/ASME | DIN |
|---|---|---|---|
| BS1501-161-430A | EN10028 P265GH | A/SA516 - Grade 60 | DIN 17155 HII |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.20 | 0.4 | 0.95/1.50 | 0.025 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength | Yield strength | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
|---|---|---|---|
| 415-550 MPa | 250 MPa | 21 | 25 |
