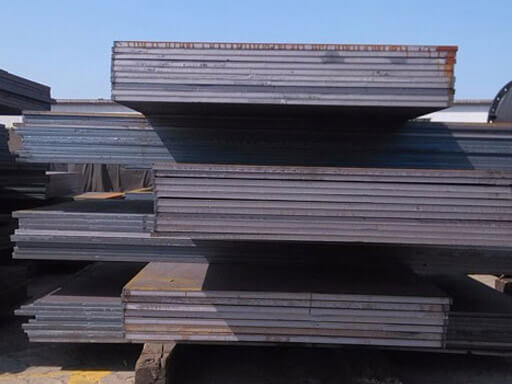

Chiranjiv Steel Centre stands as one of the premier manufacturers, suppliers, stockists, and exporters in the industry, specializing in a diverse range of products. Among our offerings, Carbon SA 516 Grade 70 NACE Steel Plates hold a prominent position.
These plates, compliant with national and international manufacturing standards, cater to both global and domestic markets. Our commitment to quality ensures that every product meets stringent criteria, making them ideal for various applications.
The versatility of SA 516 GR.70N NACE MR 0103/0175 PLATES makes them highly sought after in industries requiring strength and durability across different temperature conditions. Boasting a range of thicknesses, dimensions, and specifications, these plates are particularly favored for their exceptional properties, especially in pressure vessels and boilers.
Fabricators appreciate the ease of working with SA 516 GR.70N plates, especially in HIC considerations, owing to their thin yet robust construction. These plates are known for their superior mechanical strength, yielding strength, and corrosion resistance, making them indispensable in critical applications across petrochemical, chemical, and marine industries, among others.
When it comes to delivery, Chiranjiv Steel Centre ensures utmost protection for the SA 516 GR.70N WITH NACE MR 0103/0175 PRESSURE VESSEL STEEL PLATES. Each plate is meticulously wrapped in a waterproof coating and securely packed in wooden crates and boxes, guaranteeing safe transportation to our esteemed clients worldwide.
Chiranjiv Steel Centre remains dedicated to providing exceptional products and services, reinforcing our position as leaders in the industry. With a focus on quality, reliability, and customer satisfaction, we continue to set the benchmark for excellence.
| Grade | ASME SA 516 GR.60N Boiler and Pressure Vessel Steel Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | -52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for Boilers and Pressure Vessels Application. |
| Process of Manufacturing | Hot-Rolled (HR) |
| British Standard | European Norm | ASTM/ASME | DIN |
|---|---|---|---|
| BS1501-161-430A | EN10028 P265GH | A/SA516 - Grade 60 | DIN 17155 HII |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.20 | 0.4 | 0.95/1.50 | 0.025 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength | Yield strength | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
|---|---|---|---|
| 415-550 MPa | 250 MPa | 21 | 25 |
ASME SA 516 GR.70N NACE Plates Distributor, SA516 GR 70N NACE+HIC Boiler Quality Steel Plate, SA 516 GR.70N NACE Plates, A516 GRADE 70N NACE HIC Boiler Plates, SA 516 GR 70N NACE + HIC Boiler Plates, SA516 GR.70N NACE HIC Pressure Vessel Plates, SA 516 GRADE 70N NACE + HIC BQ Plates Stockist in Mumbai, India, ASME SA516 GR 70N HIC NACE Tested Plates Stockist, ASME SA 516 GR.70N NACE Hot rolled Plates Stockholder, SA516 GRADE 70N HIC Resistant Steel Plate, SA516 GR.70N HIC and NACE HR Plates Exporter, SA516 GR 70N Industrial (NACE+HIC) Boiler and Pressure Vessel Steel Plates Supplier in India.
